Canada’s vast territory and complex geological conditions, especially the large number of hard rock formations, place extremely high demands on rock processing equipment. Mining, road construction, bridge construction, hydroelectric power generation, and urban infrastructure projects all require a large amount of drilling and rock crushing operations. Although traditional blasting methods are efficient, they are strictly restricted near residential areas, tunnels, bridges, or special structures, and there are safety risks and environmental impacts. As a result, the market demand for non-blasting or low-impact rock crushing technologies is growing. The market is in great demand for various down-the-hole drill rigs and DTH drill rigs (i.e., down-the-hole drill rigs) to quickly and efficiently form blastholes or bolt holes in hard rock. At the same time, the demand for non-blasting rock crushing equipment, such as rock splitter machines, especially hydraulic stone splitters, is also increasing. YG’s rock splitter machine and down-the-hole drill rigs combination is just right to meet these diverse needs. Contact us now for more information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

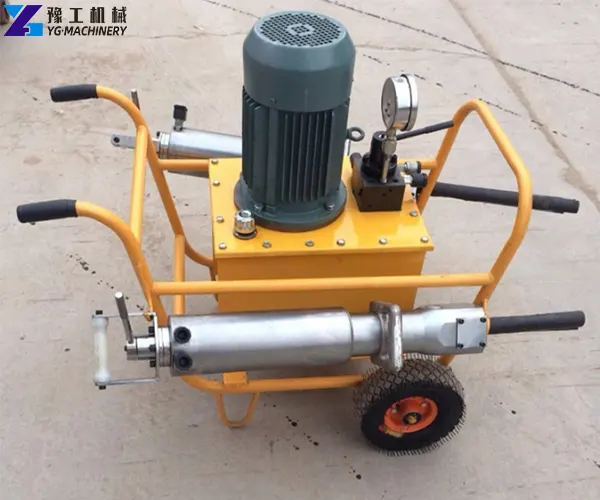

Rock Splitter Machine Parameter:
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
Down-the-Hole Drill Rigs Parameter:
| Model | YGD-70 | YGD-100 |
| Drilling Hole Diameter | 50-90mm | 90-130mm |
| Drilling Depth | 15m | 0-25m |
| Drilling Speed | 110r/min | 110r/min |
| Working Air Pressure | 0.5-0.7mpa | 0.5-1.0mpa |
| Air Consumption | 4m³/min | 6m³/min |
| Cylinder Diameter | 90mm | 140mm |
| Max. Propelled Force | 8000N | 9600N |
| Drilling Rod OD | 42mm | 50-60mm |
| Drilling Rod Length | 1025mm | 1025mm |
| Dimension | 1740*260*420mm | 2280*440*550mm |
| Weight | 280kg | 470kg |
Advantages of YG Rock Splitter Machine and Down-the-Hole Drill Rigs

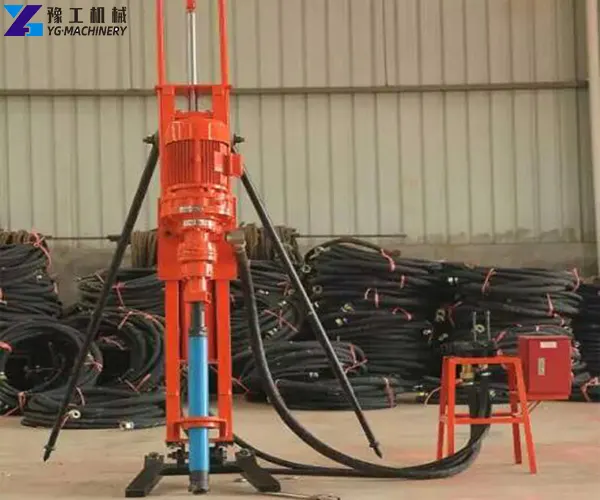

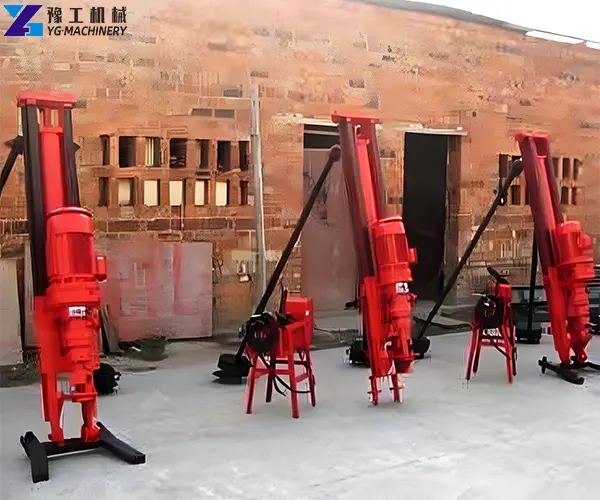

- High DTH drilling efficiency: YG’s down-the-hole drill rigs, also known as DTH drill rigs, use advanced down-the-hole impact technology to quickly and efficiently drill holes in hard rock formations, providing the basis for subsequent rock processing (whether blasting or splitting). We offer a variety of models to meet different hole diameters and depth requirements.

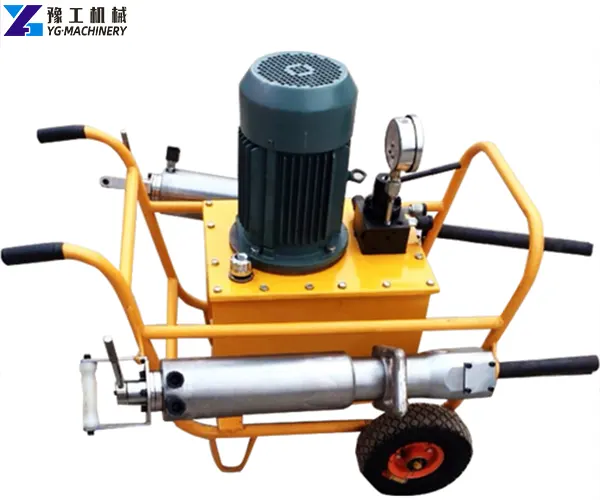

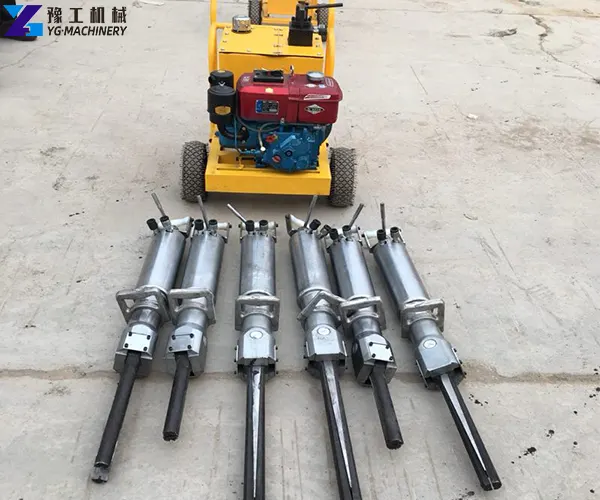

- Non-blasting rock splitting: YG’s rock splitter machine, especially the hydraulic stone splitter, uses the hydraulic principle to generate a huge splitting force, which can silently and safely split the drilled rock inside the hole. This is a very environmentally friendly and safe rock crushing method, especially suitable for areas where blasting is prohibited.
- Collaborative operation capability: YG’s down-the-hole drill rigs can be used to quickly drill holes, followed by splitting with a rock splitter machine, forming an efficient non-blasting rock crushing process. This combination is particularly suitable for projects such as urban foundation pit excavation, tunneling, and quarrying, which require a controlled crushing range and the avoidance of vibration. In addition, the hydraulic stone splitter can also be used in conjunction with a traditional rock drill after drilling.
- Excellent durability: Considering Canada’s cold climate and hard rock, YG equipment has been specially optimized in material selection and structural design, using wear-resistant and low-temperature-resistant components to ensure that the equipment maintains stable operation under harsh working conditions.
- Localized support: By cooperating with local dealers or service partners, YG can provide Canadian customers with timely technical support, operational training, and spare parts supply to solve customers’ concerns. The equipment we provide meets relevant safety standards and takes into account the convenience of local transportation and use.
Customer Success Story: Rock Splitter Machine and Down-the-hole Drill Rigs in Canada
- Customer Background: An engineering company in British Columbia, Canada, specializing in small-scale mineral exploration and infrastructure rock processing. They work in rocky mountainous areas and often need to perform exploration drilling and local rock crushing in hard rock, but are close to forest areas and roads, where blasting is restricted.
- Problems: A flexible solution is needed that can both efficiently drill hard rock and safely process rock without blasting. The equipment must adapt to the complex terrain and changing climate of the mountainous areas.
- Solution: They were very interested in the rock splitter machine and down-the-hole drill rigs combination solution provided by YG. After technical consultation, they purchased a compact crawler DTH drill rig for fast drilling and a rock splitter machine (hydraulic splitter) for rock crushing that matches their existing excavator.
- Results: YG’s DTH drill rig showed amazing drilling efficiency in the local hard rock formations, far exceeding the equipment they had previously used. The matching hydraulic stone splitter perfectly solves the problem of rock crushing. It can safely and accurately split the rock after drilling, completely avoiding the risks and approval troubles caused by blasting. This rock splitter machine and down-the-hole drill rigs combination has significantly improved their operating efficiency and expanded the types of projects they can undertake, especially in areas where blasting is not allowed. The equipment is also very reliable in starting and running in cold weather.
- Customer evaluation: The company’s project manager said, “YG’s DTH drill rig and hydraulic stone splitter combination is an ideal choice for our operations in Canada’s hard rock areas! Drilling is very fast, and the rock splitter machine can efficiently split the rock without using explosives, which greatly improves our safety and flexibility. The entire rock splitter machine and down-the-hole drill rigs solution has excellent performance, is very durable, and is fully adapted to our climate and rock conditions. Considering the performance of the equipment and the value it brings to us, its return on investment is very fast.”
Rock Splitter Machine and DTH Rigs for sale in YG Machinery
YG rock splitter machines and down-the-hole drill rigs have achieved great success in the market with their excellent drilling and blasting-free crushing capabilities, as well as their reliability in adapting to Canada’s harsh environment. The YG rock processing equipment series, including hydraulic stone splitters and down-the-hole drill rigs, provides efficient, safe, and cost-effective solutions for customers in Canadian mining, infrastructure, and quarrying industries. YG Machinery will continue to deepen its presence in the Canadian market, continuously innovate its technology, and provide high-quality rock splitter machines and down-the-hole drill rigs products and services that better meet local needs. If you are in Canada or other regions, looking for reliable and efficient rock drilling and crushing solutions, and want to learn more about YG rock splitter machines and down-the-hole drill rigs, the performance parameters of different models, or how to get a quote, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
