Are you troubled by these problems?
At mineral exploration sites, time is money—traditional mechanical drilling rigs frequently experience stuck drill incidents, each delaying operation by 2-3 days; equipment has a high failure rate under harsh operating conditions, and long lead times for imported parts cause continuously increasing downtime losses; after purchasing imported equipment, after-sales service response is slow and technical support is inadequate, meaning even minor issues can take up to a week to resume operations.

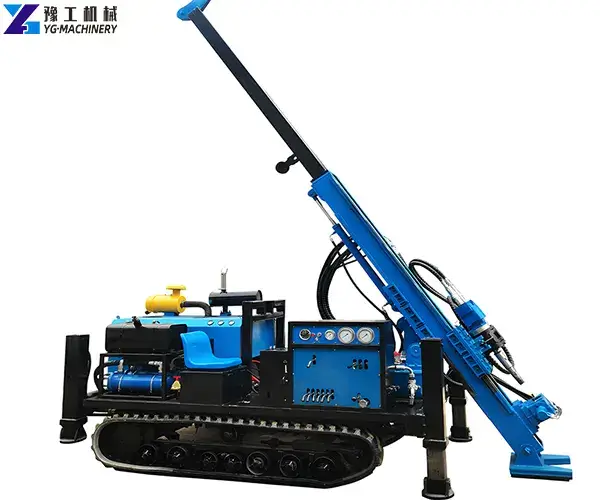

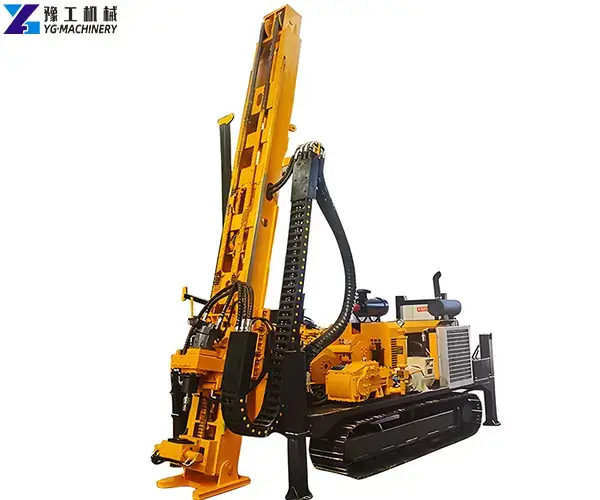

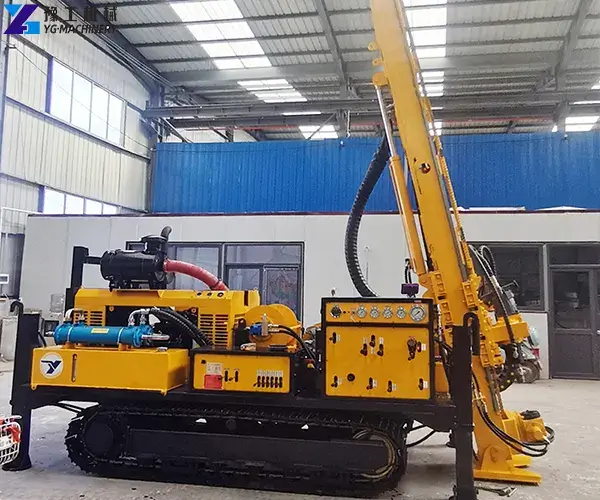

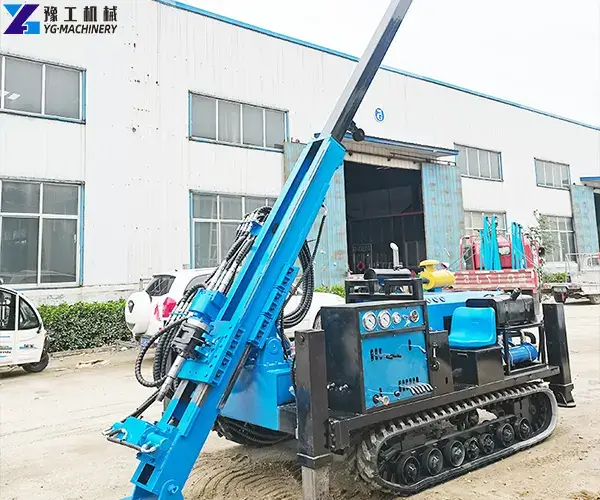

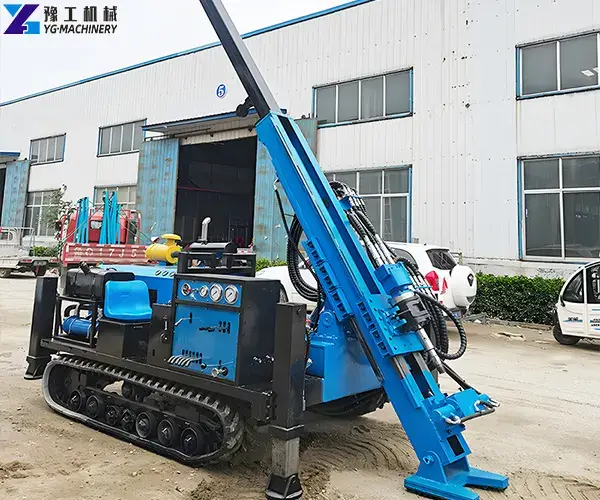

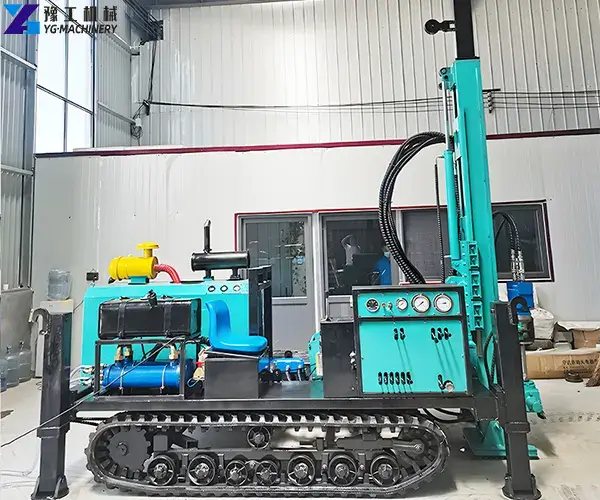

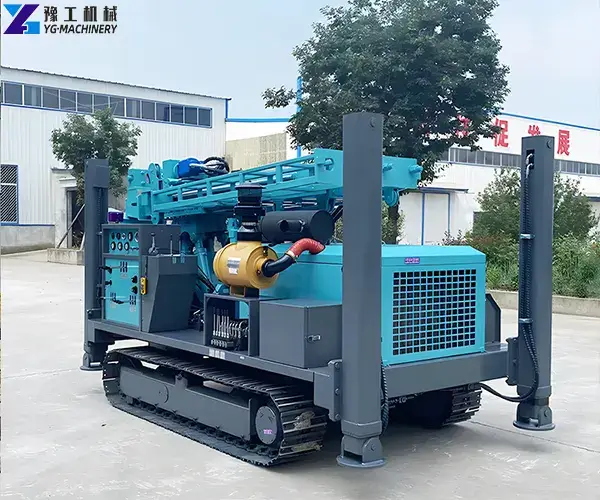

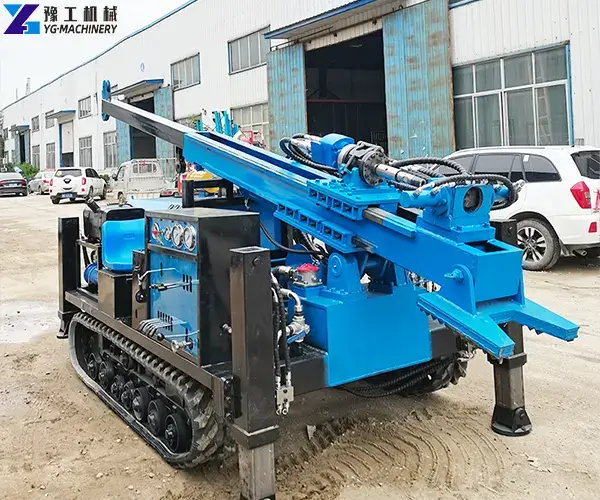

YG Machinery’s fully hydraulic core exploration drilling rig uses a fully hydraulic drive system, achieving stepless and precise control of drilling parameters, allowing operators to optimize drilling strategies in real time according to different geological conditions; key components are sourced from internationally renowned brands, coupled with our service network covering more than 50 countries worldwide, ensuring a 24-hour response time for equipment failures; the factory-direct sales model eliminates intermediaries, allowing customers to obtain rigorously quality-inspected products at more favorable prices.
Key Advantages Overview:
- Fully Hydraulic Servo Control: Drilling speed, torque, and feed force are all precisely adjusted by the hydraulic system, increasing adaptability to complex formations by 60% and effectively reducing stuck drill accidents.
- Modular Quick-Assembly Design: The drilling rig supports containerized transport, reducing preparation time for a single relocation from 48 hours to 8 hours, significantly improving turnaround efficiency between projects.
- Deep Hole Stable Operation Capability: Standard configuration depth up to 1500 meters, equipped with a dual-density mud circulation system, meeting the stringent requirements of deep hard rock exploration.
Contact YG now for more product information.
Click Here to Quickly Get More Information About the YG Fully Hydraulic Core Drilling Rig
Hot-sale YG Full Hydraulic Exploration Core Drilling Rig Technical Parameters
| Model | YGX-400 | YGX-600 | YGX-800 | YGX-1000 |
| Drilling Depth(M) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
| Rated pressure(MPA) | 21 | 21 | 25 | 28 |
| Rated Flow(L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation Mode | Air cooling+water cooling | |||
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated power/speed | 78kW/ 2400r/min | 92kW/ 2400r/min | 92kW/ 2400r/min | 154kW/2400r/min |
| Drilling Angle(°) | 0-90 | 45-90 | 45-90 | 45-90 |
| Lifting Force(T) | 12 | 16 | 24 | 30 |
| Feed Force(T) | 6 | 8 | 12 | 15 |
| Hydraulic Mud pump flow | 30-90（L/min） | 30-90（L/min） | 90-180（L/min） | 90-180（L/min） |
| Hydraulic Mud pump power | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) |
| Dimension | 4000*1900*1800mm | 4000*2000*1800mm | 5500*2100*2000mm | 6000*2200*2400mm |
| Weight | 4.3T | 4.5/5.5T | 6.5T | 7.5T |
Click Here to Quickly Get More Information About the YG Fully Hydraulic Core Drilling Rig
What Are the Practical Benefits of Using a Fully Hydraulic Core Exploration Drilling Rig?
- More accurate exploration data: Over 95% core recovery rate ensures intact core samples, reliable geological data, and avoids misjudgments and millions in losses due to data errors.
- 5 times increased construction efficiency: Wireline coring eliminates the need to lift the entire drill rod, reducing single-hole operation time by 80%, and completing in one month what used to take five months.
- 70% reduction in labor costs: The equipment can be operated by just two people, eliminating the need for extensive worker assistance, saving hundreds of thousands of dollars in labor costs annually.
- 3 times longer equipment lifespan: The fully hydraulic system eliminates mechanical wear, simplifies daily maintenance, and allows for a normal service life of up to 10 years. Over 10 years of experience
- Adaptable to complex working conditions: Stable operation in harsh environments such as mountains, deserts, and high altitudes, covering the vast majority of exploration scenarios.
8 Core Drilling Rig Core Application Areas
- Metallic mineral exploration: General survey and detailed exploration of resources such as gold, copper, iron, and bauxite.
- Non-metallic mineral exploration: Exploration and sampling of minerals such as limestone, marble, and graphite.
- Large-scale infrastructure geological exploration: Deep-hole geological exploration for high-speed railways, bridges, and hydropower stations.
- Hydrological well exploration: Construction of deep drinking water wells and irrigation wells.
- Geothermal resource exploration: Geological sampling and drilling of medium-deep geothermal wells.
- Mining production exploration: Reserve verification and ore body boundary delineation during mining operations.
- Geological hazard investigation: Deep geological structure detection for hazards such as landslides, debris flows, and ground subsidence.
- Scientific research geological sampling: Geological research and stratigraphic analysis sampling in universities and research institutes.
Click Here to Quickly Get More Information About the YG Fully Hydraulic Core Drilling Rig
Case Studies of Ghanaian and Chilean Clients Using YG’s Fully Hydraulic Core Drilling Rigs to Complete Projects
Case Study 1: Gold Exploration Project in Ghana
- Client Background: A professional gold exploration company in the Ashanti region of Ghana previously used mechanical drilling rigs, achieving a core recovery rate of only about 65%. Frequent errors in exploration data led to incorrect mining directions and significant losses.
- Problems Faced: The local strata are predominantly granite and gneiss, resulting in low drilling efficiency in hard rock and frequent drill bit jamming and rod breakage. Mechanical drilling rigs required 6 operators, leading to high labor costs.
- Solution: Purchased two standard fully hydraulic core exploration drilling rigs, equipped with NQ and HQ drill pipes, and optimized drilling parameters for the local hard rock formations.
- Results: Core recovery rate in hard rock formations increased to 96%, exploration data became more accurate, and three high-grade ore bodies were successfully delineated; construction efficiency increased fivefold, reducing single-hole operation time from 3 days to half a day; only 2 operators were required, and labor costs were reduced by 70%.
- Customer Testimonial: “This fully hydraulic core drilling rig completely transformed our exploration methods. The core recovery rate and efficiency far exceeded our expectations, helping us find high-grade gold deposits. We recouped the purchase cost in just 3 months.”
Case Study 2: Deep Copper Mine Exploration Project in Chile
- Client Background: A copper exploration company in northern Chile needed to conduct a 550-meter deep hole exploration. The local strata were hard, and ordinary hydraulic drilling rigs could not reach the required depth.
- Problems Faced: Drill rods were prone to breakage during deep hole drilling, resulting in low core recovery rates; high equipment failure rates occurred in high-temperature and dusty environments.
- Solution: Purchased one high-spec fully hydraulic core drilling rig, equipped with NQ drill rods and an intelligent anti-jamming system.
- Results: Successfully completed a 580-meter deep hole exploration with a 94% core recovery rate, passing the client’s acceptance test on the first attempt; the intelligent anti-jamming system effectively prevented drill bit jamming and rod breakage, and the equipment operated continuously for 3 months without failure.
- Customer Review: “YG’s fully hydraulic drilling rig has very stable performance, strong deep hole drilling capability, and fully meets our exploration needs. The after-sales service is also very timely. We will continue to cooperate in the future.”
Click Here to Quickly Get More Information About the YG Fully Hydraulic Core Drilling Rig
Frequently Asked Questions about Fully Hydraulic Core Drilling Rigs
A1: Standard configuration models have some stock available, with a delivery time of approximately 2-3 weeks. Customized configuration models take approximately 6-8 weeks from order confirmation to shipment. Large orders or special configurations can be delivered in batches upon negotiation.
A2: Yes. YG can provide customized services such as caliber series adjustments (PQ/HQ/NQ configuration combinations), power system replacement (electric motor drive replacing diesel engine), and special anti-corrosion treatment (suitable for saline-alkali land operation). The customization cycle and cost are determined based on the specific plan.
A3: The drilling rig is packaged in a frame container. A standard 20-foot container can transport one basic configuration unit. Frame containers or unloaded shipments are also available upon customer request. Our partner freight forwarding companies can provide door-to-door logistics services, including customs clearance and on-site placement.
A4: YG has spare parts warehouses in major market areas. Commonly used parts can be delivered within 3 days; non-stocked parts are shipped from our Chinese factory by air in approximately 7-10 days. Customers who purchase 3 or more units can enjoy an annual spare parts package subscription service.
A5: The drilling rig’s diesel engine operates at approximately 105dB at full load. With the soundproof cab, the noise level at the operator’s position can be controlled below 80dB, meeting EU Stage IIIA emission standards.
