In infrastructure projects such as pile foundations, geological exploration, and farmland irrigation, the efficiency of drilling in complex terrain has always been a core factor affecting the construction period. Ordinary wheeled equipment has poor off-road capability, and dedicated pile drivers have limited functionality, making it difficult to meet the needs of multiple construction scenarios. Crawler rotary drilling rigs, with their strong mobility, adaptability to various geological formations, and versatility, have become the main equipment for small and medium-sized construction teams and are the fastest-growing segment in the general-purpose rotary drilling rig category.

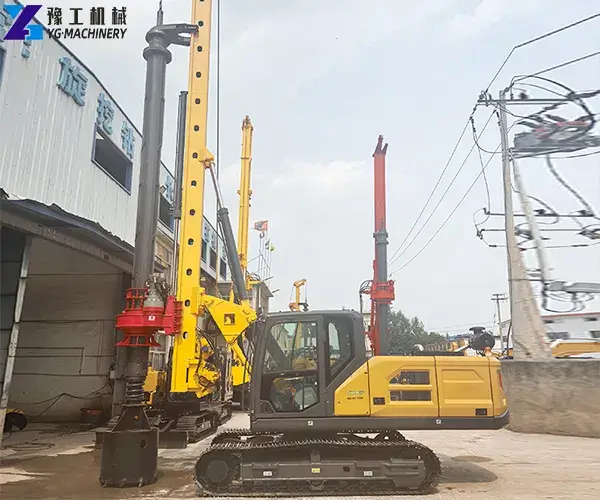

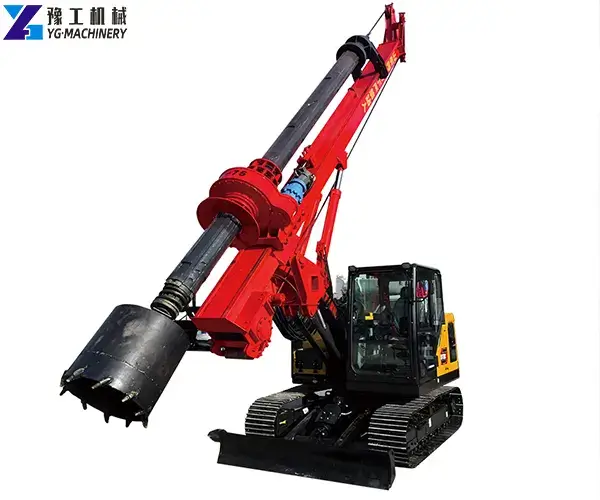

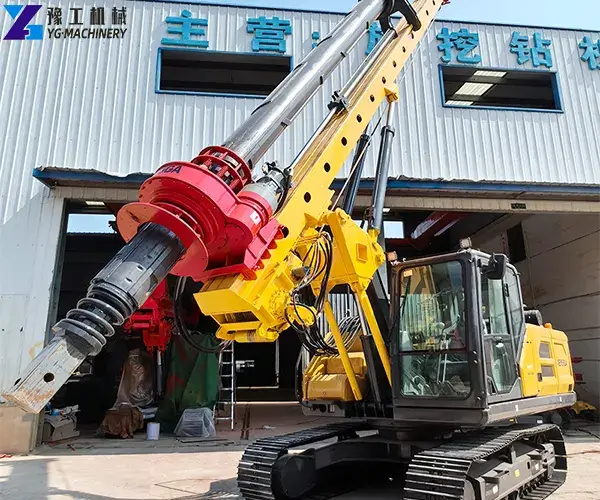

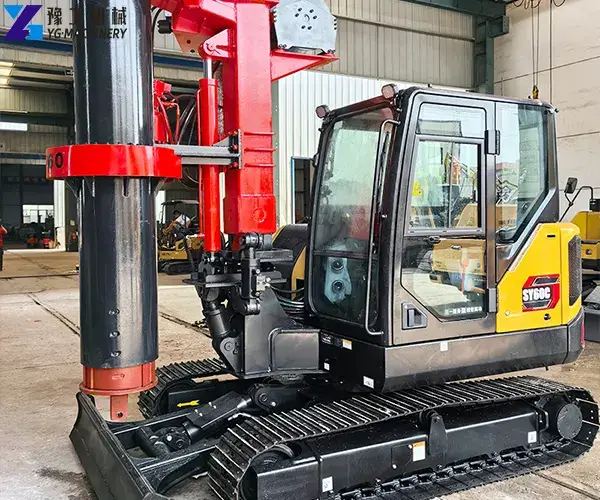

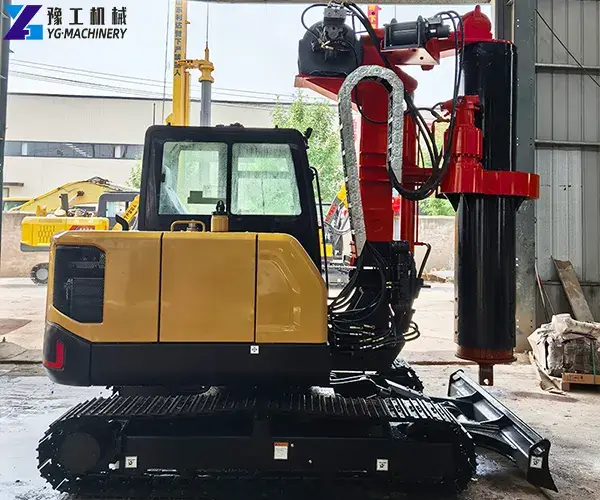

Crawler rotary drilling rigs, also known in the industry as tracked fully hydraulic rotary drilling rigs, tracked rotary drilling rigs, or foundation exploration drilling rigs, are complete drilling equipment that relies on a tracked chassis for movement and uses a fully hydraulically driven rotary drilling tool for cutting. Their core functions include pile foundation drilling, geological exploration sampling, water well drilling, and anchor bolt drilling. Changing different drilling tools allows for switching between construction scenarios, making them multi-functional rotary foundation drill rigs.
As the original manufacturer, YG offers not only its main tracked models but also 4-wheel rotary drilling rigs and various piling machines. We can recommend the most suitable equipment based on your construction scenario and geological conditions, eliminating the need to pay extra for additional features. Currently, this series of equipment has been sold in bulk to countries with rapid infrastructure and mining development, such as Indonesia, Ghana, Peru, Malaysia, and South Africa, and is widely adaptable to various geological formations, including soft soil, sand, weathered rock, and medium-hard rock. If you are interested, please contact us now for more product information.
Click to Learn More About Rotary Drilling Rigs
YG Hot-sale Rotary Drilling Rig Technical Parameters
| Model | YG-525 | YG-530 | YG-535 |
| Max. Drilling Diameter | 1500mm | 1500mm | 1500mm |
| Max. Drilling Depth | 25m | 30m | 35m |
| Rated Power | 156/2400r/min | 156/2000r/min | 156/2200r/min |
| Max. output torque | 110kN·m | 110kN·m | 120kN·m |
| Rotary speed | 7-33r/min | 17-50r/min | 17-45r/min |
| Max. pull-down piston push | 100kN | 100kN | 100kN |
| Max.pull-down piston pull | 120kN | 100kN | 100kN |
| Max. traveling speed | 3km/h | 2.6km/h | 2.6km/h |
| Min. ground clearance | 340mm | 340mm | 340mm |
| Approach angle | 21° | 21° | 21° |
| Overall Drilling Weight | 26t | 30t | 35t |
Click to Learn More About Rotary Drilling Rigs
What Are the Core Functions of a Tracked Rotary Drilling Rig?
- High torque drilling capability. The YG rotary drilling rig’s power head has a maximum output torque ranging from 46-120 KN · m, easily handling various strata from soft soil to moderately weathered rock. The intelligent control system automatically adjusts the rotation speed and downforce according to the soil hardness, preventing drill jamming and rod breakage.
- Large-diameter deep pile construction. The maximum drilling diameter can reach 1500mm, and the maximum drilling depth is 35 meters. It meets the needs of most large-diameter cast-in-place piles in building construction, bridges, and municipal engineering projects.
- 360° full rotation operation. The upper turntable supports 360° full rotation, and the drill mast can tilt ±5° left and right, 5° forward, and 90° backward. It flexibly adapts to various construction angles and space constraints.
- Rapid soil-throwing function. The power head features a unique high-speed soil-throwing design, with a soil-throwing speed of 65 RPM, increasing efficiency by 20% compared to ordinary models. This advantage is particularly significant in clay layers and wet soil conditions.
- Tracked travel + self-loading and unloading. The tracked chassis has a travel speed of 3.2 km/h and a maximum gradeability of 39%. The machine can be loaded and unloaded from a flatbed truck independently, requiring no additional lifting equipment.
- It features both dry and wet drilling modes. The appropriate mode can be selected based on geological conditions: dry drilling is suitable for clay and hard soil layers, while wet drilling (with mud slurry wall protection) is suitable for sand layers and strata below the groundwater level.
Click to Learn More About Rotary Drilling Rigs
Why Choose YG Tracked Rotary Drilling Rigs?
- Fast Piling Speed, Guaranteed Project Completion. YG rotary drilling rigs utilize a high-torque power head and an optimized hydraulic system, increasing drilling efficiency by 20%-40% compared to similar equipment. Customer feedback from a Peruvian bridge project indicates that using YG rigs improved drilling efficiency by 40%, allowing for early project completion.
- Low Operating Costs, Saving on Fuel and Money. The hydraulic system precisely configures flow and pressure, offering both fast and fine operating modes. Average fuel consumption is reduced by 15%. Low equipment failure rate, with maintenance costs significantly lower than those of European and American brands.
- Versatile, Adaptable to Various Geological Formations. Different drilling tools allow for various tasks: auger bits for soft soil, core drilling for hard rock, and bucket drilling for crushing gravel layers. YG also offers a rotary drilling machine for soil investigation configurations, meeting the dual needs of exploration and pile foundation construction.
- Factory Direct Sales, High Cost-Effectiveness. As the original manufacturer, YG eliminates intermediaries, resulting in prices 30%-50% lower than comparable European and American equipment. All equipment undergoes rigorous testing for 48 hours before leaving the factory and possesses complete CE and ISO certifications.
- Global After-Sales Service Ensures Worry-Free Parts Availability. YG provides remote video guidance, technical manuals, and express delivery of parts. Consumable parts such as drill pipes, drill bits, and hydraulic components are kept in stock year-round and shipped within 48 hours.
Click to Learn More About Rotary Drilling Rigs
Frequently Asked Questions about Tracked Rotary Drilling Rigs
A1: YG rotary drilling rigs have a maximum drilling depth range of 10-35 meters. The YG525 is suitable for depths up to 25 meters, the YG530 up to 30 meters, and the YG535 up to 35 meters. Customization is available for other needs. Most building and bridge foundation work is within the 12-20 meter range.
A2: Tracked rigs are suitable for complex sites such as muddy, soft, and sloping terrain, offering high stability. Wheeled 4-wheel rotary drilling rigs can travel on roads, allowing for fast relocation, and are suitable for flat terrain and projects requiring frequent relocation. YG produces both types; the recommended type will be chosen based on the working conditions.

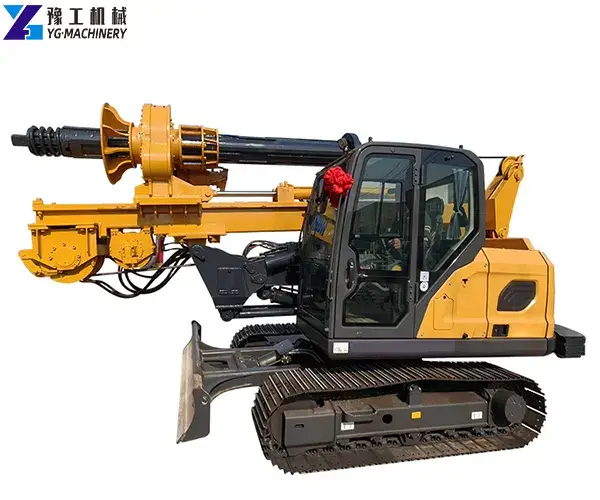

A3: Yes. YG rotary drilling rigs have a maximum torque of 120 kN · m and can drill into moderately weathered rock layers when paired with a spool drill or rock bucket. For extremely hard rock, a down-the-hole hammer is recommended.
A rotary drilling rig drills a hole and then pours concrete to form a pile, suitable for large-diameter, deep piles. A pile driver drives precast piles into the ground, suitable for small-section piles. YG sells both rotary foundation drill rigs and pile drivers to help you choose the most suitable equipment.
A5: It has been exported to over 100 countries, with popular markets including Mexico, Peru, Oman, South Africa, Zimbabwe, Romania, Kazakhstan, and the Philippines.
A6: 1-year machine warranty, free remote video technical guidance, detailed maintenance manual, 48-hour parts delivery, and lifetime parts supply.
Buy Crawler Rotary Drilling Rig from Yugong Machinery
A YG crawler rotary drilling rig enables you to efficiently complete various foundation pile construction projects—from building construction to bridges, from water conservancy to photovoltaic power stations. With flexible model options (10-35 meters depth), strong adaptability to different geological formations, and factory-direct pricing, YG rotary drilling rigs have served customers in over 100 countries.
Whether you need a rotary drilling rig for foundation pile construction, a rotary drilling machine for soil investigation, or a pile driver for precast pile construction, YG can recommend the most suitable equipment for you.
