CFA Piling Machines Sold to the United States for Foundations

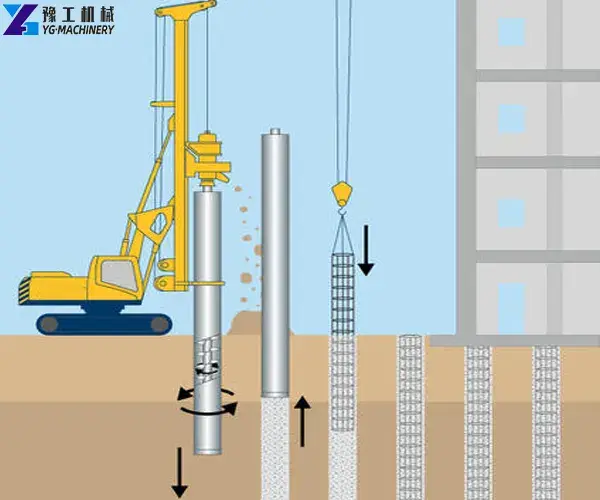

Foundation contractors across the United States rely on efficient, dependable drilling equipment for commercial buildings, industrial facilities, bridge projects, highway infrastructure, energy installations, and residential developments. CFA piling — also called auger cast piling or ACIP piling in the U.S. — uses a hollow-stem continuous flight auger to drill to design depth, then pumps concrete or grout through the auger as it is withdrawn, forming a cast-in-place pile without the need for casing or slurry.

A deep foundation specialist in Texas recently purchased one of our CFA piling machines for a large-scale commercial warehouse project. This is the type of CFA piling machine sold to the United States that we have engineered for demanding American jobsite conditions — chosen not for its price tag alone, but for its torque capacity, drilling consistency, and the configuration support we provided from day one.

Customer Background and Project Challenges

The customer is a foundation contractor based in the Dallas–Fort Worth metro area, specializing in commercial and industrial foundation work. Their current project involved a 120,000 sq ft warehouse and logistics facility with significant pile foundation requirements.

Based on the project geotechnical report, subsurface conditions included expansive clay, sandy silt, and mixed overburden typical of North Texas, requiring controlled drilling with consistent pile integrity across over 300 pile locations.

The contractor faced several challenges with their previous equipment:

Insufficient torque and crowd force — the older rig struggled in denser soil layers, causing inconsistent drilling and frequent stalls.
Slow pile installation cycles — fewer piles per day than the schedule demanded, putting the timeline at risk.
High maintenance costs and unplanned downtime — aging hydraulic components and limited spare-parts availability led to costly delays.
Lack of real-time monitoring — no integrated data logging for drilling depth, concrete pressure, or extraction rate, making quality documentation difficult.
Low-vibration requirements near existing structures — portions of the site bordered occupied buildings and a nearby roadway.
Need for responsive technical support — the contractor needed fast spare-parts delivery and remote troubleshooting, not just a machine sale.

Click to Learn More About CFA Piling Machines

Our Solution: Customized Continuous Flight Auger Piling Machine for U.S. Projects

After reviewing the geotechnical report, pile design drawings, and site constraints, Yugong recommended a customized continuous flight auger piling machine configured for the specific demands of this project.

Key specifications of the recommended configuration:

Rig model: YG-5150
Maximum torque: 150 kN·m (110,600 ft-lb)
Maximum drilling depth: up to 50 m (164 ft) with auger extensions; project target depth: 15 m (49 ft)
Typical pile diameter range: 400–800 mm (16–31 in)
Crowd force: 120 kN (pull-down) | Extraction force: 160 kN (main winch)
Engine: Weichai, 173 kW (232 hp)
Mast configuration: standard, upright height 17,200 mm in working condition
Hollow-stem auger compatibility: 400–800 mm diameter, modular flight sections up to 50 m total length
Concrete/grout pumping interface: integrated with standard concrete pump via hollow-stem delivery elbow and concrete conveying hose
Digital monitoring system: real-time logging of pile depth, rotary speed (7–33 rpm), crowd pressure, extraction rate, concrete pressure, and concrete volume per pile
Operator cabin: enclosed with climate control; centralized lubrication system; ground-level maintenance access points
Optional equipment: additional auger flight sections, concrete delivery hoses, remote diagnostics module, dust suppression attachments
Transport dimensions: 15,000 × 3,200 × 3,600 mm
Operating weight: approximately 48 tons.
This configuration represents the type of CFA piling machines sold to the United States for demanding auger cast and deep foundation projects. Final capacity, tooling selection, and auxiliary equipment are determined according to geotechnical conditions, required pile geometry, structural design, and jobsite access constraints — never one-size-fits-all.

Click to Learn More About CFA Piling Machines

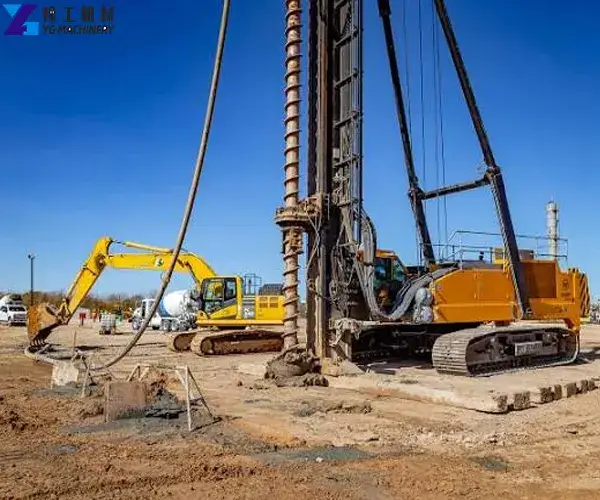

continuous flight auger piling rig for sale

Delivery, Commissioning, and Operator Training

The delivery process followed Yugong’s standard export protocol:

Pre-shipment inspection and factory testing — full operational test at Yugong’s manufacturing facility, verifying hydraulic pressure, torque output, monitoring system calibration, and safety interlocks.
Export packing and ocean freight — rig prepared for break-bulk shipment to the Port of Houston, Texas, with complete documentation (packing list, operation manual, maintenance manual, spare-parts catalog).
On-site commissioning — rig assembly, system checks, and first-pile test installation at the customer’s jobsite in Dallas–Fort Worth.
Operator training — covering rig setup, drilling parameter optimization, concrete pumping coordination, pile monitoring, daily inspection, and safety procedures.

The exact delivery schedule depends on rig configuration, manufacturing lead time, ocean freight, customs clearance, inland transportation, and site readiness.

Project Results and Customer Value

After commissioning, the contractor deployed the YG-5150 CFA piling rig on the warehouse foundation project. Actual results varied by soil profile, pile design, concrete supply logistics, crew experience, and operating conditions. Reported outcomes from the project include:

Pile installation productivity: target performance of 20–30 piles per day (49 ft depth, 600 mm diameter), meeting the project schedule.
Improved drilling consistency in expansive clay and sandy silt, with more uniform penetration rates and fewer stalls compared to the previous rig.
Reduced unplanned downtime by an estimated 30–40% (project result), attributed to more reliable hydraulic components and faster access to spare parts.
Enhanced quality documentation through the integrated monitoring system, providing real-time data on drilling and concreting parameters for each pile — simplifying inspections and engineer approvals.
Better schedule control through more predictable pile installation cycles, reducing the risk of cascading delays to downstream trades.
Lower total cost per installed pile compared with the previous equipment, driven by higher daily output and reduced rework.

“Since switching to Yugong’s CFA piling rig, our daily pile output has increased significantly while maintenance costs have dropped. The monitoring system makes quality documentation much easier for our project engineers.”

— Michael Rodriguez, Operations Manager, Dallas Foundation Solutions LLC, Texas

Click to Learn More About CFA Piling Machines

Why U.S. Contractors Choose Yugong as Their Foundation Drilling Equipment Supplier

U.S. foundation contractors evaluating a CFA drilling rig for sale should consider the full picture — not just machine specs, but the supplier’s ability to support the equipment over its working life:

Proven export experience — we have shipped and commissioned CFA piling machines sold to the United States across multiple states.
Project-based rig selection — we recommend equipment based on your geotechnical data, pile design, and site constraints.
Flexible configuration — torque, mast height, crowd/extraction force, auger diameter, drilling depth, and engine options can all be tailored to your project.
Quality-inspected core components — Weichai or Cummins engine options, internationally sourced hydraulic components, and full factory testing before shipment.
Transparent documentation and ongoing support — inspection reports, operation manuals, spare-parts lists, remote troubleshooting, and spare-parts planning by serial number.

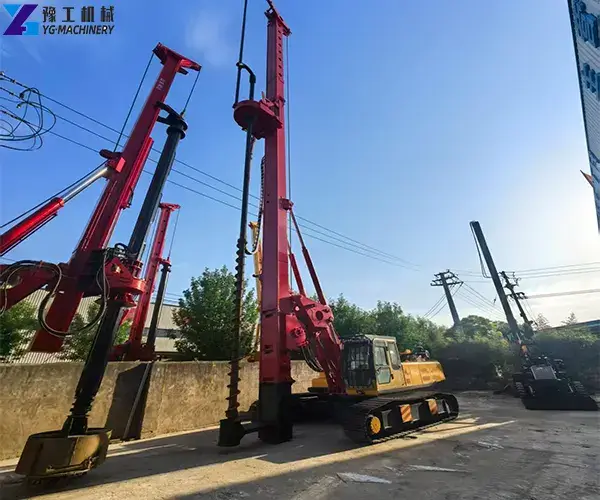

Also Available: Compact and Small CFA Piling Rig Options

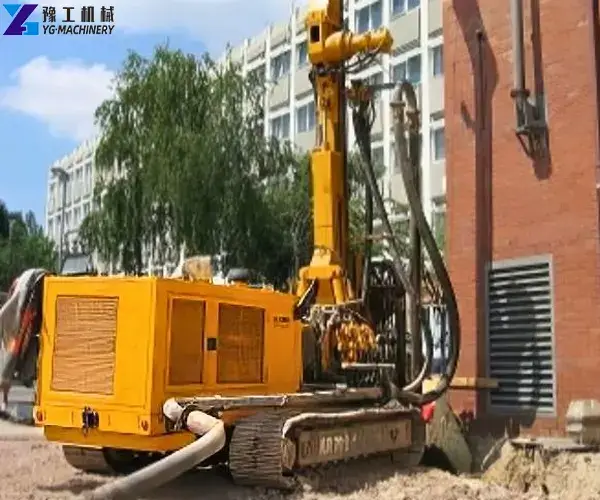

YG does not only supply large CFA rigs. We also offer a small CFA piling rig and compact CFA drilling rig for restricted-access urban sites, low-clearance work areas, smaller commercial and residential foundations, utility and slope stabilization projects, and contractors diversifying their fleet.

Our compact CFA piling rig features a 6,500 kg operating weight, 100–800 mm pile diameter range, 6–10 m drilling depth, 100 kN drill pull force, and a Quanchai 485 diesel engine (34 kW). Transport dimensions of 7,300 × 2,100 × 2,850 mm make it easy to relocate between job sites. Multiple options available based on required pile diameter, depth, soil profile, access conditions, and budget.

Typical CFA Applications in the United States

CFA piling technology is widely used across American construction sectors:

Commercial and residential building foundations
Warehouses, logistics facilities, and industrial buildings
Data centers and energy projects
Bridges, roads, rail, and public infrastructure
Retaining structures and foundation support near existing buildings
Sites where low noise and low vibration are critical

CFA is not suitable for every soil condition. Equipment and method selection should always be verified against geotechnical data and local engineering standards.

Click to Learn More About CFA Piling Machines

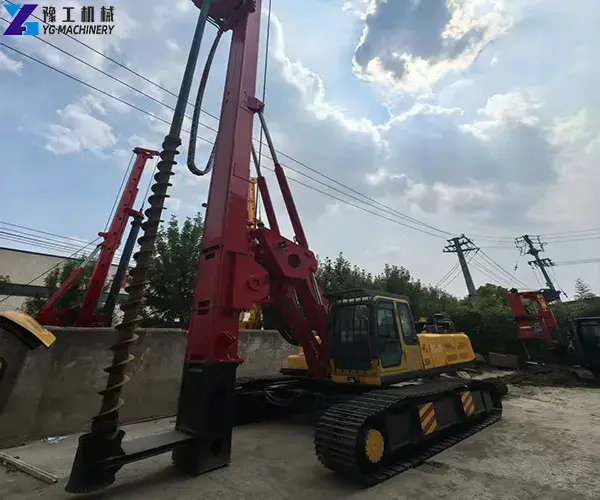

cfa piling machines sold to the united states

Get a Tailored Quote for Your U.S. Foundation Project

If you are looking for CFA piling machines sold in the United States, YG can help you select a suitable configuration for your foundation project. We provide heavy-duty continuous flight auger piling machines for larger production work as well as compact CFA drilling rig options for smaller and restricted-access sites.

Submit an inquiry through our website, email [sales@yugongdrillingrig.com], call [+86 136 1385 6800], or contact us via [+86 136 1385 6800]. For an accurate quotation and technical proposal, please send:
