Traditional well drilling rigs have fixed chassis, which are either too bulky to fit in narrow spaces or have poor maneuverability to traverse rough terrain, forcing many projects to be abandoned. The modular, custom-designed borehole drilling rig for sale supports four mobility options: two-wheeled, three-wheeled, tractor-towed, and tracked. Customers can choose the option that best suits their needs, avoiding extra costs for less frequently used chassis, perfectly covering all construction scenarios from narrow rural roads to rugged mountain terrain. All accessories, including drill rods and drill bits, can be purchased separately. Currently, the YG series drilling rigs are sold in bulk to the United States, Australia, South Africa, Southeast Asia, and other regions. They are widely adaptable to private drinking water wells, farm irrigation wells, and small-scale dewatering wells, making them a cost-effective choice for small and medium-sized construction teams, farmers, and rural construction companies.
The four mobility options each have clearly defined applicable scenarios, and all can be added as needed:

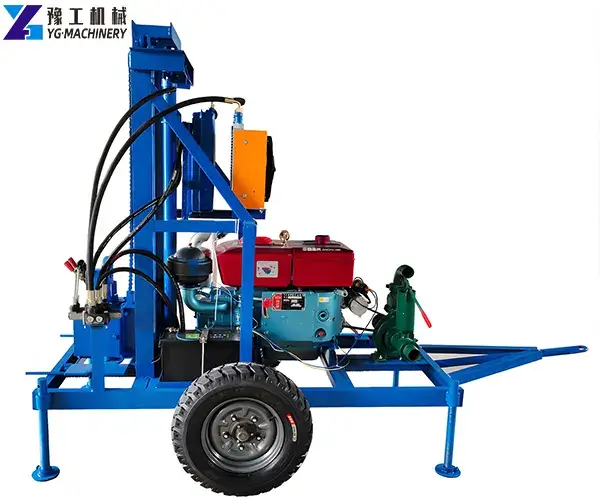

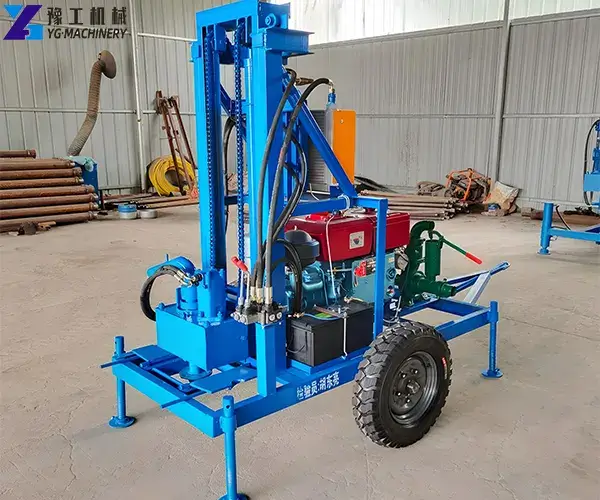

- Two-wheeled chassis: The ultra-narrow body design, with a minimum width of only 0.9 meters, relies on two-wheeled pushing or pickup truck towing, making it the lightest and easily movable by a single person. Suitable for operation in extremely narrow spaces such as alleys, courtyards, and fenced areas, this chassis offers the lowest purchase cost and can be used as an entry-level option, with the possibility of upgrading to other chassis later.
- Three-wheeled motorcycle chassis: Equipped with a three-wheeled motorcycle chassis, it features a driver’s seat and can drive at low speeds to the construction site, allowing for flexible relocation without a trailer. It balances narrow-road passability and maneuverability, enabling it to reach 3-4 scattered construction sites per day, making it the mainstream choice for rural well-drilling teams.
- Tractor-drawn chassis: Comes with a tow rack, allowing direct attachment to existing tractors on farms for relocation. An independent power unit is also available as an option. Suitable for large farms and ranches operating in a dispersed manner, it allows for the reuse of existing agricultural machinery, resulting in lower overall investment costs.

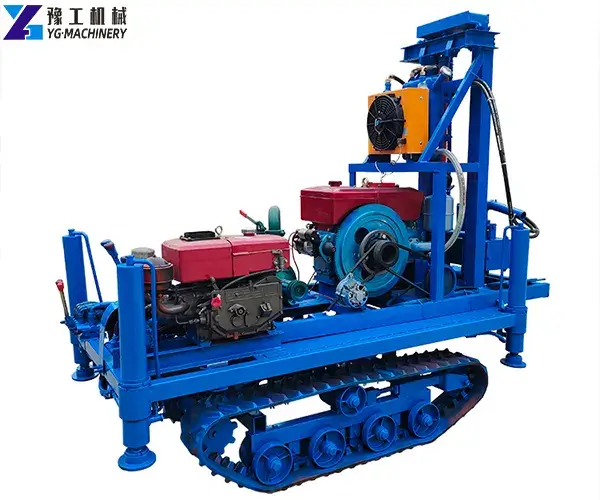

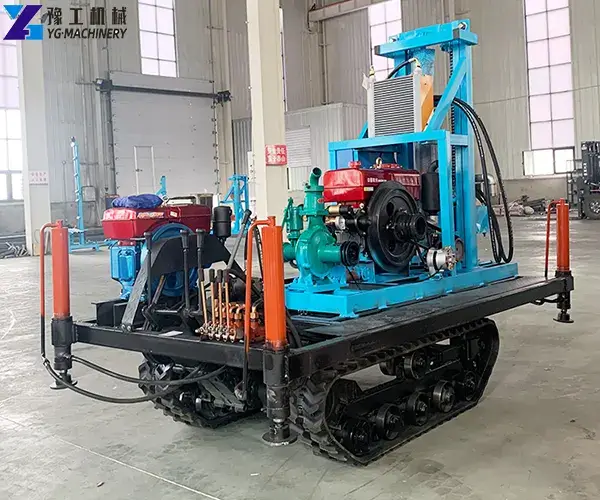

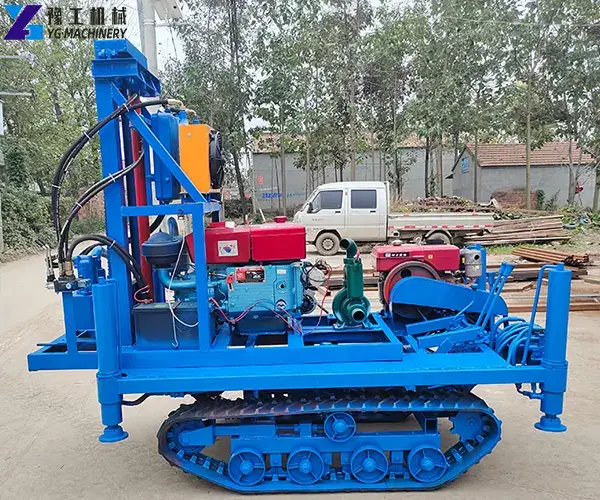

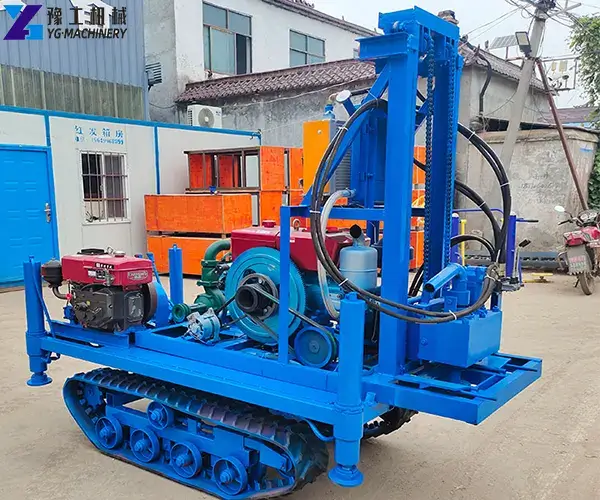

- Crawler chassis: Features widened, anti-slip tracks with low ground pressure, allowing for smooth passage through mud, sand, mountains, and snow, with the strongest climbing ability. Suitable for complex terrain, unpaved mountainous areas, and mining areas, eliminating any limitations related to road conditions.
Click to Learn More About YG Water Well Drilling Rigs
YG Small Borehole Drilling Rig Technical Parameters
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
Click to Learn More About YG Water Well Drilling Rigs
A Real-World Case Study from a US Client: YG’s Small Water Well Drilling Rigs Used in an Irrigation Well Project on a Texas Ranch
Client Background
A family-owned ranch in West Texas, USA, covering 1200 acres, primarily raises beef cattle and grows alfalfa. The area is chronically arid with little rainfall, and the existing wells provide insufficient water. The ranch needed to install 12 new irrigation wells, each 180 meters deep, as well as drinking water wells for the livestock.
Pain Points Faced
- Outsourcing to large drilling companies was expensive, with single-well costs exceeding $8,000 USD, resulting in a significant budget overrun for the 12 wells.
- The ranch’s internal access roads were narrow, with the narrowest point only 1.2 meters wide, making it impossible for large drilling equipment to enter. Replacing fences with new roads was also costly.
- The previously purchased small manual drilling rig lacked sufficient power to penetrate the underground limestone layers, resulting in extremely low well completion rates—less than half a well could be completed per day.
Solution:
The client purchased one tracked borehole drilling rig from us, along with 200-meter standard drill pipe and diamond hard rock drill bits, with an optional diesel engine compliant with EPA Tier 4 standards. Spare drill bits and wear parts kits were also purchased separately for future consumable replenishment.
Practical Results
- The tracked body, with a width of 1.1 meters, easily traverses all narrow passages on the ranch, eliminating the need to dismantle fences or repair roads, saving high upfront costs.
- The fully hydraulic power easily handles limestone layers, completing a single 180-meter well in one day, averaging two wells per day—four times the efficiency of the previous manual drilling rig.
- The total construction cost for 12 wells was only 40% of the outsourcing quote, recovering the purchase cost in less than six months.
- Subsequent drill rods and bits can be purchased and replaced individually when worn, avoiding bulk replacements, resulting in consumable costs 30% lower than those of local suppliers.
Customer Testimonials
“This portable borehole drilling rig is perfect for our ranch. It’s small, powerful, and can navigate narrow spaces. Drilling wells ourselves is much cheaper than outsourcing, and spare parts can be purchased separately, making maintenance very convenient. We’ve already recommended it to several ranchers in the surrounding area, and everyone is very interested.”
Click to Learn More About YG Water Well Drilling Rigs
Why Should You Choose YG Borehole Drilling Rigs?
- Reduce drilling costs. YG rigs are factory-direct priced, typically 30%-50% lower than comparable American or European brands. Hydraulic systems save 15% on fuel compared to mechanically driven rigs.
- Adapt to various terrains. With tracked, wheeled, and trailer options, a single YG rig platform can cover all well operations, from your backyard to a remote ranch. No need to buy different machines for different sites.
- Rapid deployment. Wheeled models drive directly to the drilling location, eliminating the need for additional flatbed trailers. Tracked models feature automatic positioning via hydraulically leveling outriggers. Most rigs can start drilling within 30 minutes of arrival on site.
- Complete spare parts supply. Drill pipes, drill bits, mud pump accessories, casing, centralizers, and more can all be purchased separately from YG. No more waiting for third-party suppliers.
- Durable and reliable. YG uses internationally renowned hydraulic components, high-strength alloy drill pipes, and hardened steel drill bits. Each device undergoes 48 hours of factory testing before leaving the factory. It is CE and ISO certified.
Where Can You Use a Borehole Drilling Rig?
- Agricultural Irrigation — Drilling irrigation wells for farmland, orchards, vineyards, and greenhouses.
- Livestock Water Use — Providing reliable water sources for cattle, sheep, and poultry farms in rural areas.
- Residential Wells — Drilling private wells for homes without access to municipal water.
- Geothermal Drilling — Drilling vertical boreholes for ground-source heat pump systems (heating and cooling).
- Engineering Dewatering — Drilling dewatering wells at construction sites to lower the water table.
- Environmental Monitoring Wells — Installing wells for groundwater quality monitoring.
- Emergency Relief — Rapid water supply for drought relief and post-disaster recovery.
- Mining Exploration — Drilling exploration boreholes for mineral sampling and geological surveys.
Click to Learn More About YG Water Well Drilling Rigs
Buy a YG Small Borehole Water Well Drilling Rig for Sale from YG Machinery Manufacturer
Our borehole drilling rigs for sale boast four customizable chassis options, individually purchasable accessories, and upgradeability, perfectly matching drilling needs across different scales and scenarios. Whether you’re a small-scale home drilling household, a rural well-drilling team, a large farm, or a field engineering team, you can find the most suitable configuration. You won’t need to pay for unnecessary features, and you won’t have to worry about insufficient equipment for future business expansion.
As the original manufacturer, we support full configuration customization. Drill rods and bits can be purchased separately, the chassis can be upgraded later, and we have a comprehensive after-sales service system. Our equipment has been successfully deployed and validated in projects in multiple countries worldwide. If you have drilling equipment procurement needs, contact us now for a free customized chassis selection plan, an accurate quote, and construction technical guidance!
