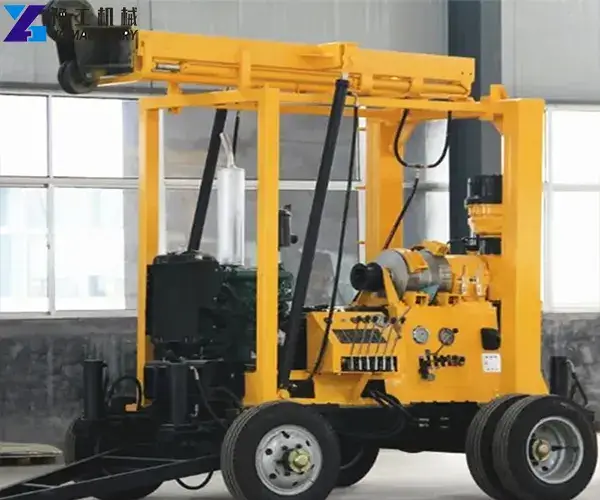

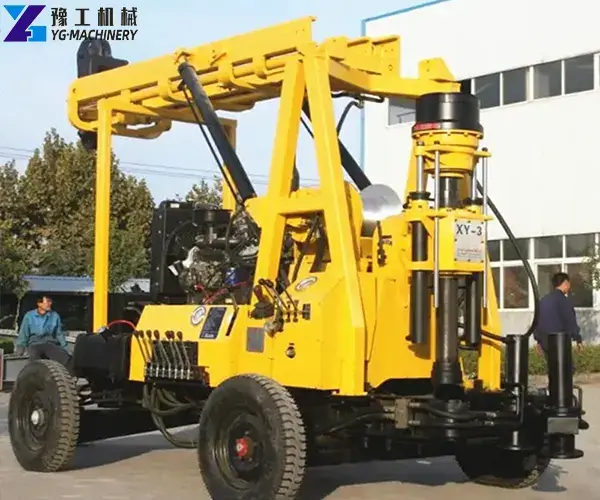

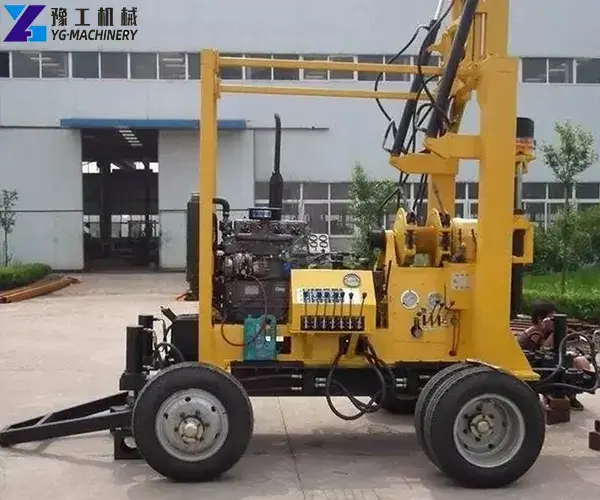

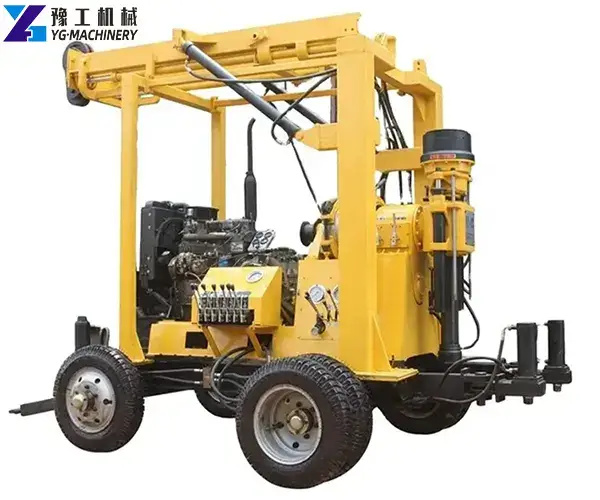

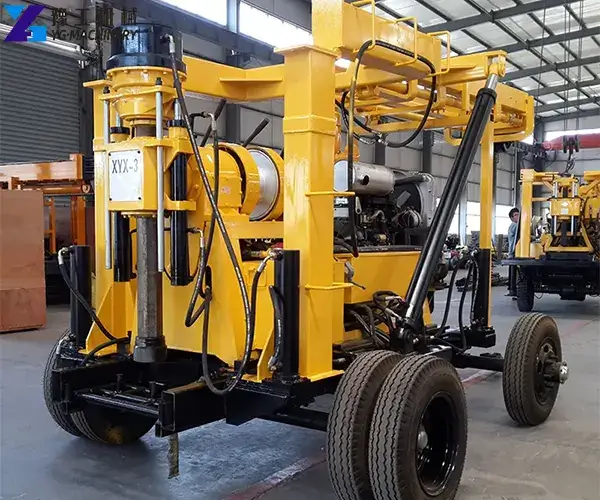

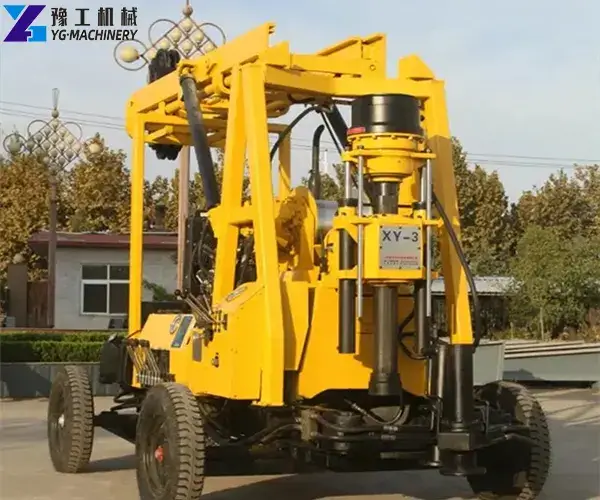

The core feature of trailer-type water well drilling rigs is their mobility. It integrates the main components of traditional water well drilling rigs, such as a power system, drilling tower, drill pipe, mud pump (optional), and operation control system, on a sturdy trailer chassis. This chassis is usually equipped with tires, towing bars, etc. so that it can be towed and moved by vehicles such as cars, trucks, and tractors like ordinary trailers. Compared with fixed or large vehicle-mounted drilling rigs, trailer-type water well drilling rigs have high flexibility and convenient mobility. It can be easily transported to various terrains, including rugged mountainous areas, remote villages, narrow work sites, etc., without relying on large transport vehicles or lifting equipment. If you are looking for a trailer mounted water well drilling rig, contact us now for more information.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
Trailer Mounted Water Well Drilling Rig Parameter:
| Technical Parameter | Model | XYX-3 |
| Drilling Depth (m) | 600 | |
| Open Hole Diameter (mm) | 325 | |
| Final Hole Diameter(mm) | 75 | |
| Drill Pipe Diameter(mm) | 60 | |
| Drill Pipe Inclination (°) | 90-75 | |
| Power (kW) | 13.2 | |
| Weight (kg) | 3600 | |
| Dimensions(mm) | 2900*2560*3300 | |
| Spindle | Speed(r/min) | 32-1057 |
| Stroke(mm) | 600 | |
| Winch | Max Pull Force(kg) | 3000 |
| Pull Speed(m/min) | 0.3-1.9 | |
| Rope Diameter(mm) | 12.5 | |
| Roll Capacity(m) | 65 | |
| Drill Mast | Rated Load(ton) | 18 |
| Height(m) | 6.5 | |
| Mud Pump | Mud Pump | BW-250 |
| Work Pressure | 80kg/cm² | |
| Displacement(L/min) | 250 | |
| Hose | Inlet Hose Diameter(mm) | 76 |
| Outlet Hose Diameter(mm) | 51 |
Advantages of Trailer-Type Water Well Drilling Rigs:
- Excellent mobility: Relying on the trailer chassis, the drilling rig can be easily towed by vehicles such as pickup trucks and tractors, and quickly transfer to the work site. There is no need for large transport vehicles and lifting equipment, which greatly saves transportation costs and time. It is especially suitable for geological exploration, field operations, and projects that require frequent changes in work locations.
- Quick installation and easy operation: With an integrated design, the equipment has been assembled and debugged before leaving the factory. After arriving at the work site, it can be put into use by simply unfolding the legs and connecting the power source. The installation process is quick and convenient, which greatly shortens the preparation time and improves work efficiency. The operation interface is also usually designed to be simple and intuitive, easy to learn and use, and reduces the skill requirements for operators.
- Economical and efficient, cost-effective: It is usually more advantageous than large drilling rigs in terms of price. At the same time, the efficient operation capacity and convenient mobility can effectively reduce labor costs, transportation costs, and time costs. Overall, it is very cost-effective and is an ideal choice for small and medium-sized enterprises, individual contractors, and users with limited budgets.
- Wide applicability: Trailer-type water well drilling rigs can be flexibly configured with different drilling techniques and drilling tools according to different drilling needs and geological conditions, such as rotary drills, impact drills, down-the-hole hammer drills, etc., which can adapt to a variety of strata and drilling depths. The application range is very wide, whether it is rock strata, sand strata, or clay strata, it can effectively cope with it.
- Environmental protection and energy saving: Some advanced trailer-type water well drilling rigs use energy-saving and environmentally friendly power systems, such as diesel-electric hybrid or electric models, which reduce energy consumption and noise pollution, and meet the requirements of modern society for green environmental protection.
Wide Application Areas of Trailer-Type Water Well Drilling Rigs:
- Rural drinking water projects: In remote mountainous areas, arid areas, or rural areas not covered by water supply networks, trailer-type water well drilling rigs can quickly and conveniently provide residents with clean drinking water sources, improve rural residents’ drinking water conditions, and improve their quality of life.
- Agricultural irrigation: For small farms, orchards, or vegetable planting bases, economically and efficiently drill irrigation wells to solve the problem of agricultural irrigation water, improve agricultural production efficiency, and ensure food security.
- Geological exploration and mineral exploration: In field geological exploration and mineral resource exploration projects, trailer-type water well drilling rigs can quickly move to the exploration point for sampling drilling, which is efficient and low-cost.
- Engineering construction and pile foundation engineering: In some small-scale engineering construction or pile foundation engineering projects, trailer-type water well drilling rigs can be used for preliminary geological exploration, precipitation well construction, or shallow pile foundation drilling.
- Emergency drought relief and disaster relief: In the event of natural disasters such as drought or earthquake, trailer-type water well drilling rigs can be quickly deployed to the disaster area to provide emergency water supply for the affected people.
- Family use: Some families with larger homesteads or farmland, can also choose a small trailer-type water well drilling rig to solve their family water needs or courtyard irrigation needs by themselves and achieve water freedom.
Trailer Mounted Water Well Drilling Rig for Sale in YG Machinery
Trailer mounted water well drilling rig with its excellent mobility, can quickly reach construction sites in remote mountainous areas and inconvenient transportation, greatly saving transportation time and cost. With super high drilling efficiency and advanced technology, it can accurately cope with various complex geological conditions, whether it is hard rock or soft sand. In terms of operation, it is simple and easy to understand, and ordinary workers can get started after simple training. Daily maintenance is also easy and convenient, which reduces the threshold of use and later maintenance costs. In terms of practical application, whether it is drilling irrigation wells in vast farmland to provide a water source guarantee for crop growth; or in areas where there is a lack of tap water supply, it creates clean and safe living water wells for residents; or in industrial projects, it provides stable production water for manufacturing, mining, etc., and helps obtain key geological samples in the field of geological exploration. It performs well. From small individual drilling companies to large-scale water conservancy projects, industrial projects, etc., it can adapt to businesses of different sizes, and the price range is rich, from basic models to high-end configurations, which can meet various budget needs. If you are anxious about well drilling efficiency, cost, or operational problems under complex geological conditions, please contact us now.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
