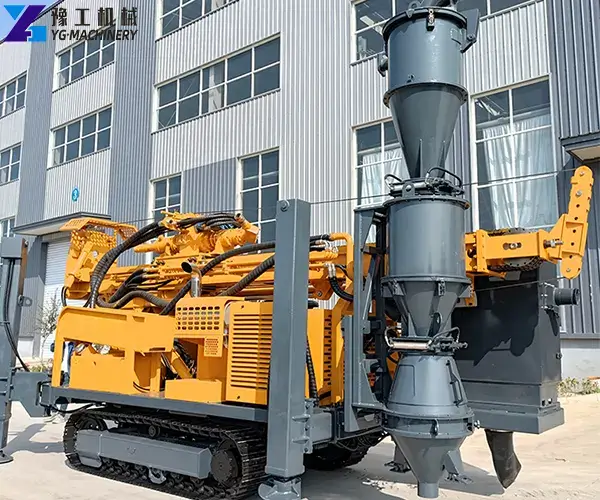

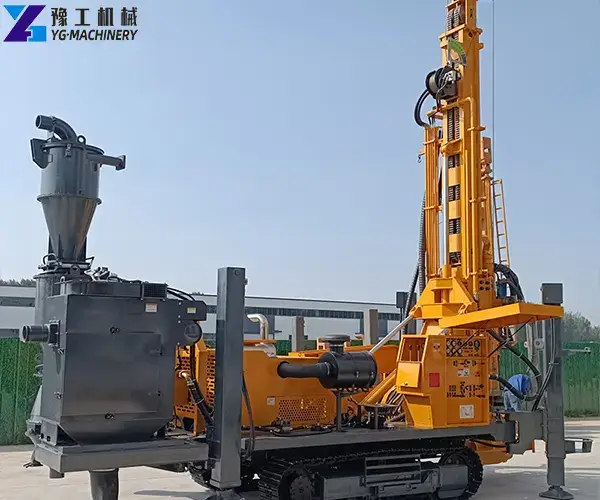

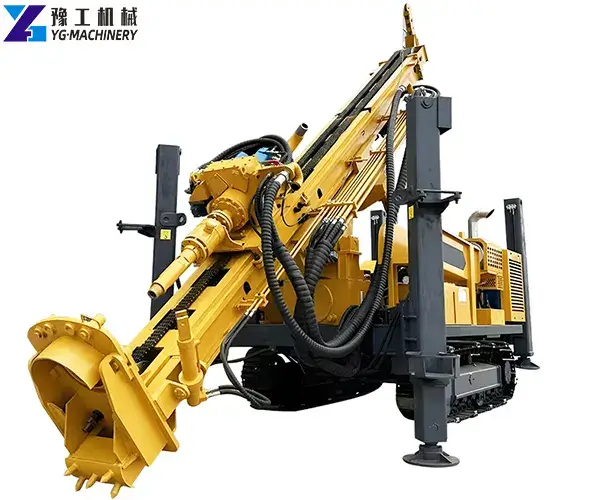

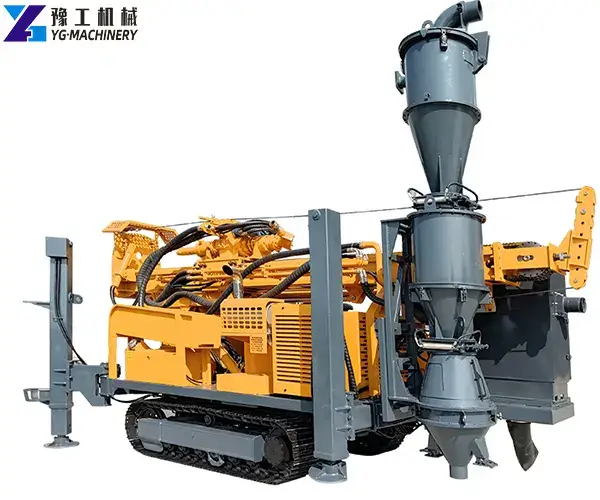

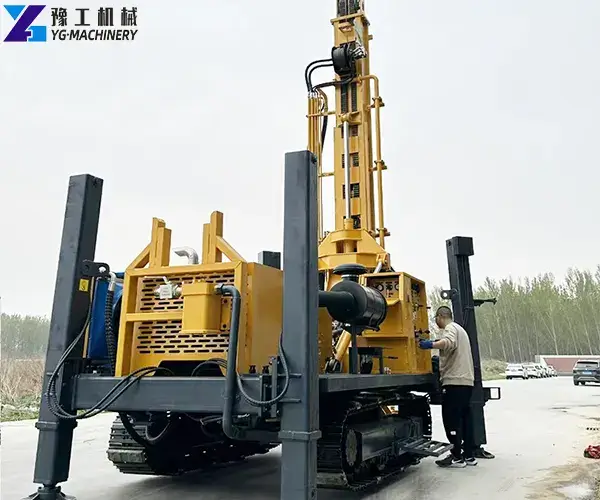

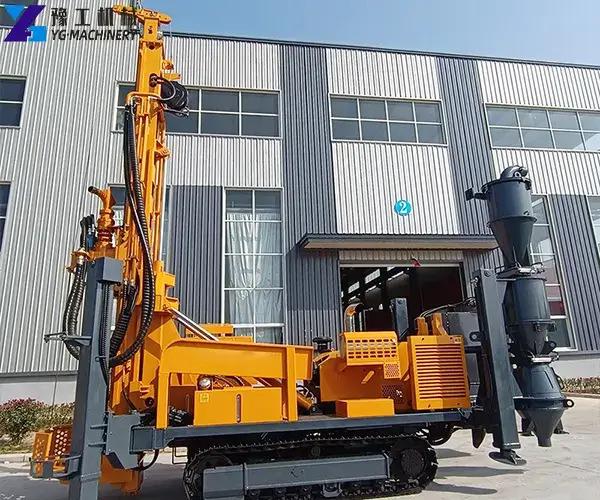

RC drill rig, or reverse circulation drill, has become the preferred equipment in the field of deep hole drilling with its unique drilling technology and excellent performance. As a leader in the machinery and equipment industry, YG brand has been deeply engaged in drilling technology for many years and has launched high-performance RC drill rigs to provide more efficient and reliable drilling solutions to global customers. In the field of modern engineering construction and mineral exploration, efficient and accurate drilling equipment is essential. Contact us now for more RC drill rig details and quotes.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
Reverse Circulation Drill Rig Parameter:
| Model | YG150RC | |
| Drill rig weight(crawler mounted) | kg | 9000 |
| Engine Power | kW | 125 |
| Length × Width × Height (normal) | mm | 6750x2200x2950 |
| Ambient Temperature Range | °C | -10～38 |
| Drill Ability | ||
| Nominal Drill Depth | m | 150 |
| End-hole Diameter | mm | 110-250 |
| Drill angle | ° | -10-90 |
| Horizontal hole height | m | 1.85-2.8 |
| Drill head output | ||
| Max Output Torque | N.m | 8000 |
| Output Rotation Speed(continuity) | rpm | 30 / 60 54/108rpm |
| Output Rotation Speed(interval) | rpm | 62 / 124 105/210rpm |
| Feeding | mm | 3500 |
| Thrust Force | kN | 45 |
| Lifting Capacity | kN | 65 |
| Pipe-puller Device Output | ||
| Output Rotation Speed | rpm | 40 |
| Max Output Torque | N.m | 30000 |
| Hole-through Diameter | mm | 370 |
| Auxiliary Winch | ||
| Pull Force of the First Layer | kN | 11 |
| Rope Diameter | mm | 14 |
| Rope Capacity | m | 60 |
| Engine(Cummins) | 6BTA5.9-C125 | |
| Power | kW | 125 |
| Rotary Speed (Max.) | rpm | 2200 |
| Track Chassis Base | ||
| Walk Speed | Km/h | 1.2 |
| Unit Pressure | MPa | ＜0.05 |
| Climb Ability | ° | ≥20 |
YG Brand RC Drill Rig Features & Specifications:
- Efficient deep hole drilling capability: With a powerful power system and advanced reverse circulation technology, the RC drill rig can easily cope with deep hole drilling operations under various complex geological conditions, with a maximum drilling depth of hundreds of meters.
- Excellent reverse circulation effect: With the gas lift reverse circulation system, the rock cuttings generated during drilling can be quickly and effectively removed, keeping the bottom of the hole clean, and significantly improving drilling efficiency and drilling quality.
- Precise control performance: Equipped with an intelligent hydraulic control system and a sensitive operating mechanism, the RC drilling machine can achieve precise drilling trajectory control and drilling parameter adjustment to meet various high-precision drilling needs.
- Stable and reliable operability: Key components are all made of international first-class brands and high-quality materials, and have undergone rigorous testing and verification to ensure that the equipment can continue to operate stably under harsh working conditions with a very low failure rate.
- Wide adaptability: The RC drill rig for sale is not only suitable for hard rock formations, but also for soft and broken formations, and has a very wide range of applications.
- Safe and environmentally friendly design concept: The equipment design fully considers operational safety and environmental protection, and is equipped with complete safety protection devices and dust suppression systems to reduce operational risks and environmental pollution.
RC Drill Rig Applications & Use Cases:
- Mineral exploration: In mineral resource exploration, it is used to drill core samples to help geologists analyze the distribution of underground minerals. For example, when a large mining company was exploring mountainous areas, it used YG Brand’s RC drill rig to successfully overcome the problem of complex terrain, efficiently obtain core samples, and speed up the exploration progress.
- Building foundation construction: In the foundation construction of construction projects, it is used for drilling and piling. A high-rise construction project in a certain city uses this drill rig for foundation drilling. The precise control of drilling depth and angle ensures the quality of the pile foundation and the stability of the building.
- Water conservancy project: In the construction of water conservancy facilities, it is used to drill and install various pipelines and monitoring equipment. In the renovation project of a large reservoir, the RC drill rig was used to quickly complete the drilling work before laying the pipeline, ensuring the project was completed on time.
RC Drill Rig Manufacturer – YG Machinery
In summary, the YG reverse circulation drill rig, with its excellent performance, stable operation, wide application field, and perfect after-sales service, is the ideal choice for your deep-hole drilling project. Choose the YG brand RC drill rig, you will have an efficient, reliable, and economical drilling solution to escort your engineering construction and resource development! In addition, YG also sells full hydraulic core drill rigs, rotary drilling rigs, HDD drill rigs, and so on. Contact us for more information.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800
